CET-105A
  • LED Power: 40W
  • Size: 205×151×56mm
  • Housing Net Weight: 265g
  • Material: Aluminum Alloy + Tempered Glass
  • Chips Quantity: 54 LED
  • Glass Clip Quantity: 4
GET FREE QUOTE
CONTACT US
Share to
Detailed Introduction

CET-105A

Patent Certificate:

  1. Complete lamp appearance patent and patent validity evaluation report
  2. Lens appearance patent

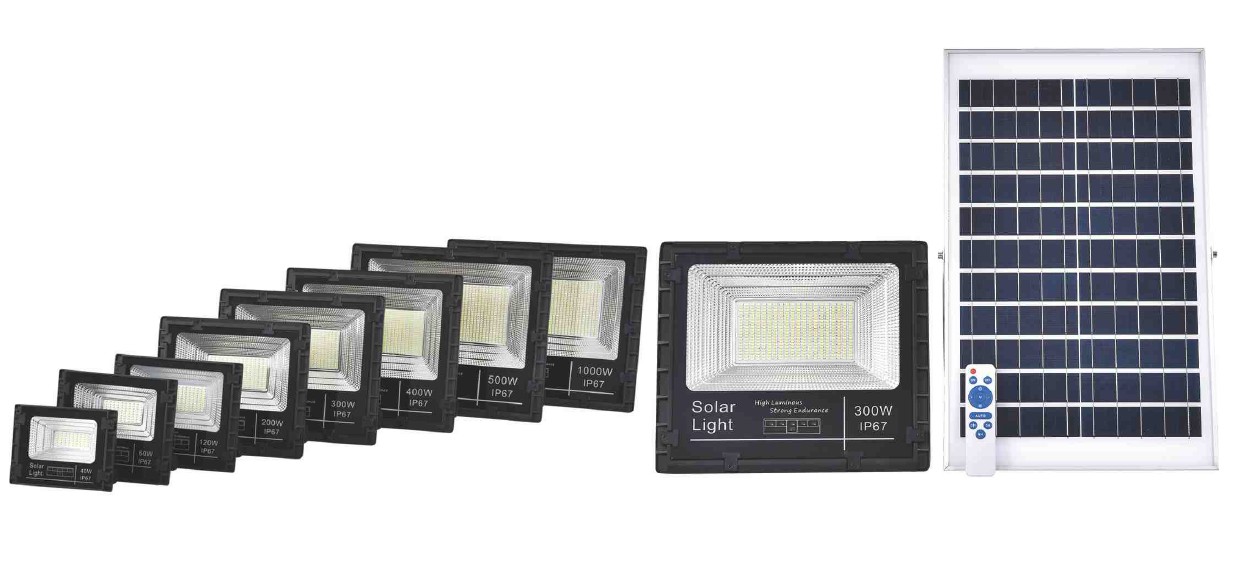

CET-105A Flood Light Specifications

Model LED Power Size Housing N.W. Material Chips QTY Clip QTY
CET-105A 40W 205×151×56mm 265g Aluminum Alloy + Tempered Glass 54 LED 4
CET-105A 60W 240×200×56mm 350g Aluminum Alloy + Tempered Glass 80 LED 4
CET-105A 120W 265×212×56mm 430g Aluminum Alloy + Tempered Glass 132 LED 4
CET-105A 200W 320×273×56mm 538g Aluminum Alloy + Tempered Glass 225 LED 8
CET-105A 300W 360×310×56mm 780g Aluminum Alloy + Tempered Glass 400 LED 8
CET-105A 400W 395×335×56mm 880g Aluminum Alloy + Tempered Glass 648 LED 8
CET-105A 500W 460×370×56mm 1170g Aluminum Alloy + Tempered Glass 1112 LED 12
CET-105A 1000W 460×370×56mm 1170g Aluminum Alloy + Tempered Glass 1112 LED 12

Solar Solution Recommendation

LED Floodlight Power Battery Solar Panel Real Power Working Time
40W 1PC 5AH 8W 3W 18-20H
60W 2PCS 10AH 12W 6W
120W 3PCS 15AH 15W 9W
200W 4PCS 20AH 25W 13W
300W 5PCS 25AH 30W 15W-18W
400W 6PCS 30AH 35W 20W-24W
500W 8PCS 40AH 40W 25W-30W
1000W 10PCS 50AH 50W 30W-36W

Lighting Mode: Timer Control + Remote Control

Lighting Time Schedule:

  1. 100% brightness for the first 10 minutes
  2. 80% brightness for the next 1 hour
  3. 70% brightness for the next 1 hour
  4. 60% brightness for the next 1 hour
  5. 50% brightness for the next 1 hour
  6. 30% brightness for the next 1 hour
  7. 20% brightness for the remaining time until dawn

Remarks:

Equipped with independent 5-level power indicator, integrated PCB board with pre-mounted LED chips, with remote control function
