Patent certificate: Whole-lamp appearance patent
| Model | LED Power | Size(mm) | Housing N.W. | Material | 7000K Chips QTY | RGB Chips QTY | Clip QTY |
|---|---|---|---|---|---|---|---|

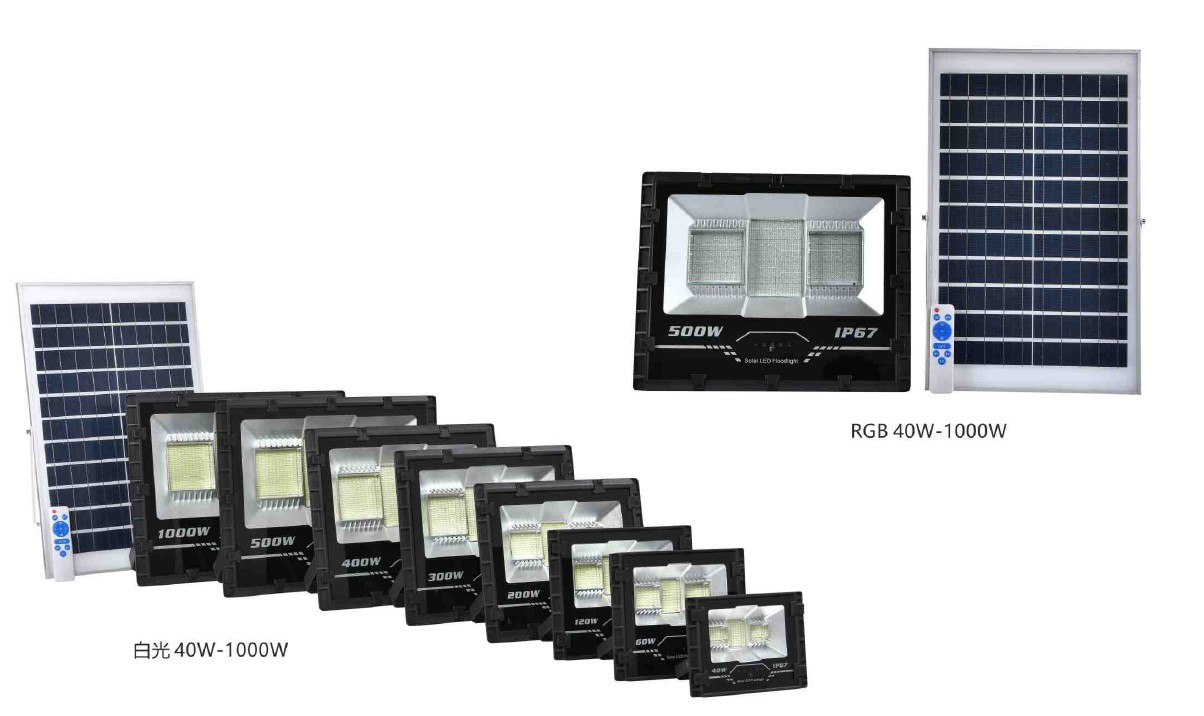

| CET-105C | 40W | 205×151×56mm | 265g | AL+Glass | 2835-126D | 5050-RGB-36D | 4 |
| CET-105C | 60W | 240×200×56mm | 350g | AL+Glass | 5730-130D | 5050-RGB-60D | 4 |
| CET-105C | 120W | 265×212×56mm | 430g | AL+Glass | 5730-174D | 5050-RGB-95D | 4 |
| CET-105C | 200W | 320×273×56mm | 538g | AL+Glass | 5730-265D | 5050-RGB-127D | 8 |
| CET-105C | 300W | 360×310×56mm | 780g | AL+Glass | 5730-480D | 5050-RGB-238D | 8 |
| CET-105C | 400W | 395×335×56mm | 880g | AL+Glass | 5730-690D | 5050-RGB-304D | 8 |
| CET-105C | 500W | 460×370×56mm | 1170g | AL+Glass | 5730-960D | 5050-RGB-396D | 12 |
| CET-105C | 1000W | 460×370×56mm | 1170g | AL+Glass | 5730-960D | 5050-RGB-396D | 12 |
| LED Power | Battery | Solar Panel | Real Power | Working Time |
|---|---|---|---|---|
| 40W | 1PCS 5AH | 8W | 3W | 18-20H |
| 60W | 2PCS 10AH | 12W | 6W | 18-20H |
| 120W | 3PCS 15AH | 15W | 9W | 18-20H |
| 200W | 4PCS 20AH | 25W | 13W | 18-20H |
| 300W | 5PCS 25AH | 30W | 16W | 18-20H |
| 400W | 6PCS 30AH | 35W | 20W | 18-20H |
| 500W | 8PCS 40AH | 40W | 25W | 18-20H |
| 1000W | 10PCS 50AH | 50W | 28W | 18-20H |
Lighting mode: Timer + Remote control Lighting schedule:
