| Model | Power | Size | Initial Power | Stable Power | Housing N.W. | Material | Housing Color | Chips | PCB Series & Parallel Mode |
|---|---|---|---|---|---|---|---|---|---|

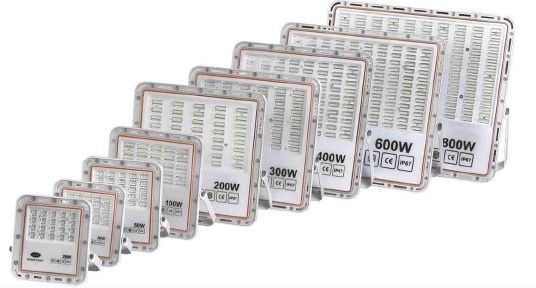

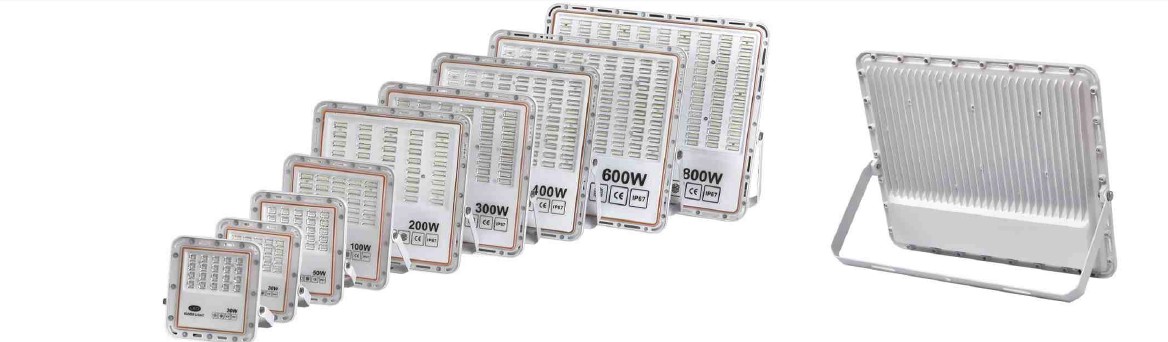

| CET-109B | 10W | 176x154x31mm | 95-100% | 95-100% | 200g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 2B10C |
| 20W | 176x154x31mm | 95-100% | 95-100% | 200g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 2B10C | |
| 30W | 176x154x31mm | 95-100% | 95-100% | 200g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 4B10C | |
| 50W | 203x175x31mm | 95-100% | 75-80% | 270g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 2B25C | |
| 100W | 241x221x39mm | 95-100% | 75-80% | 400g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 4B25C | |
| 150W/200W | 320x314x39mm | 95-100% | 75-80% | 760g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 4B25Cx2 | |
| 300W | 340x329x43mm | 90% | 60% | 910g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 4B25Cx3 | |
| 400W | 379x370x43mm | 75% | 50% | 1220g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 4B25Cx4 | |
| 600W | 420x446x43mm | 75% | 50% | 1750g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 4B25Cx6 | |
| 800W | 465x516x43mm | 75% | 50% | 2550g | AL+PC Lens
|
Black/White | 2835SMD or 3030SMD, 1W | 4B25Cx8 |
109B available with DOB split board
