| Model | Power | Size | Housing N.W. | Material | Pole Dia. | Housing Color | Chips | Chips QTY | PCB |
|---|---|---|---|---|---|---|---|---|---|

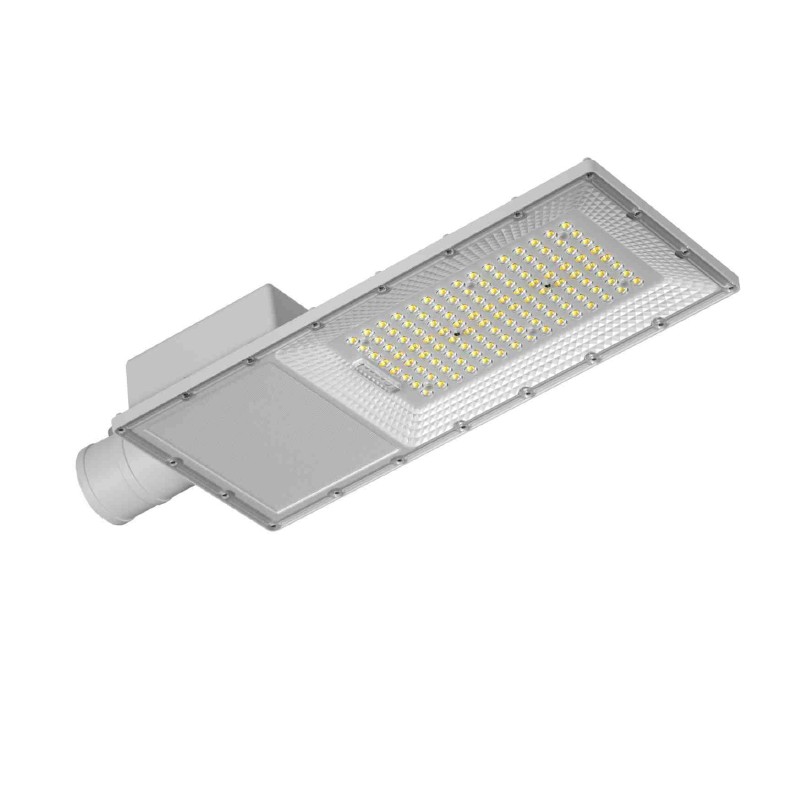

| CET-114C | 50W/60W | 428×174×68mm | 650g | Die-cast Aluminum + PC Lens
|
φ50 | Sand Black/Grey
|
2835 1W
|
60LED | 12B5C |
| 100W | 428×174×68mm | 650g | φ50 | 100LED | 10B5C×2 | ||||
| 100W/120W | 556×212×79mm | 930g | φ60 | 120LED | 12B5C×2 | ||||
| 150W | 644×232×80mm | 1380g | φ60 | 150LED | 10B5C×3 |
Note: This street light offers four linear driver solutions, full power, SPD 4KV, 2-year warranty. Available in 50W / 100W / 120W / 150W.

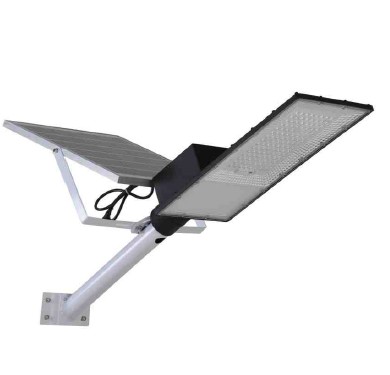

| LED Power | Battery | Solar Panel | Real Power | Working Time |
|---|---|---|---|---|
| 60W | 3PCS 15AH | 20W | 8-10W | 20-24H |
| 100W | 4PCS 20AH | 25W | 10-12W | 20-24H |
| 120W | 5PCS 25AH | 30W | 12-15W | 20-24H |
| 150W | 6PCS 30AH | 35W | 15-18W | 20-24H |
