| Model | Power | Size(mm) | Housing N.W. | Material | Shine Angle | Pole Dia. | Housing Color | 3030SMD LED Qty | 3030SMD PCB | 5050SMD LED Qty | 5050SMD PCB |
|---|---|---|---|---|---|---|---|---|---|---|---|

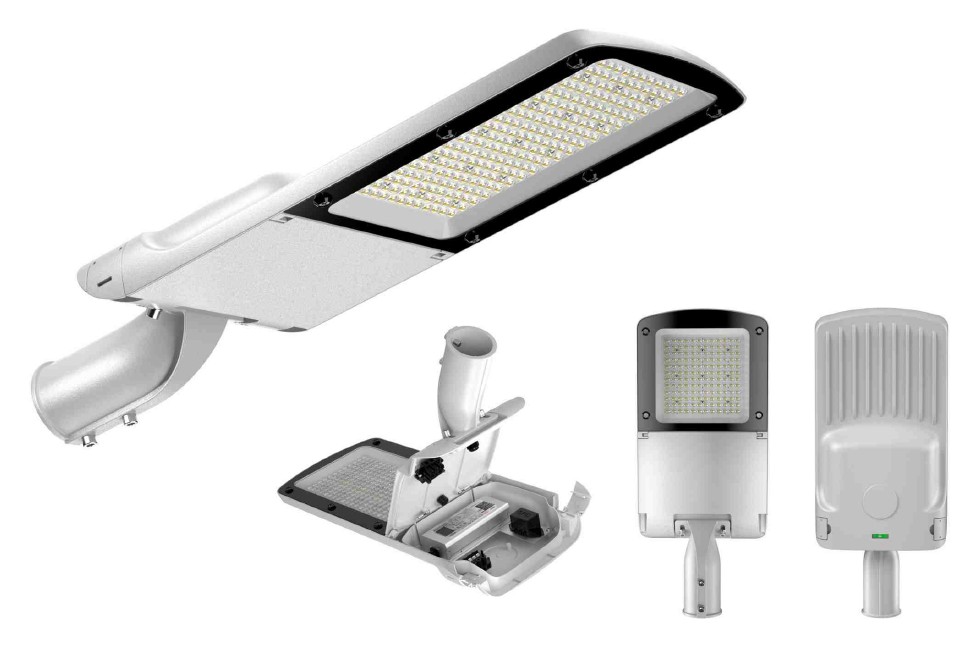

| CET-136 | 30W-60W | 588×210×110 | 1630g | Die-cast Aluminum + 4.0 Glass PC Lens
|
60°/90°/120°
|
φ60 | Sand Black/Grey
|
72/96/144LED | 9B8C/12B8C/18B8C | 24/36/48LED | 12B2C |
| 70W-120W | 600×258×110 | 2030g | φ60 | 108/144/216LED | 18B6C/18B8C/27B8C | 36/54/72LED | 27B2C | ||||
| 150W-180W | 700×258×110 | 2460g | φ60 | 180/240/360LED | 30B6C/30B8C/45B8C | 60/90/120LED | 45B2C | ||||
| 200W-250W | 705×308×110 | 2940g | φ60 | 240/320/480LED | 30B8C/40B8C/60B8C | 80/120/160LED | 60B2C | ||||
| 300W-320W | 788×335×115 | 3710g | φ60 | 384/576LED | 48B8C/72B8C | 144/192LED | 72B2C |
