| Model | Power | Size | Housing N.W. | Material | Pole Dia. | Housing Color | Chips | Chips QTY | PCB |
|---|---|---|---|---|---|---|---|---|---|

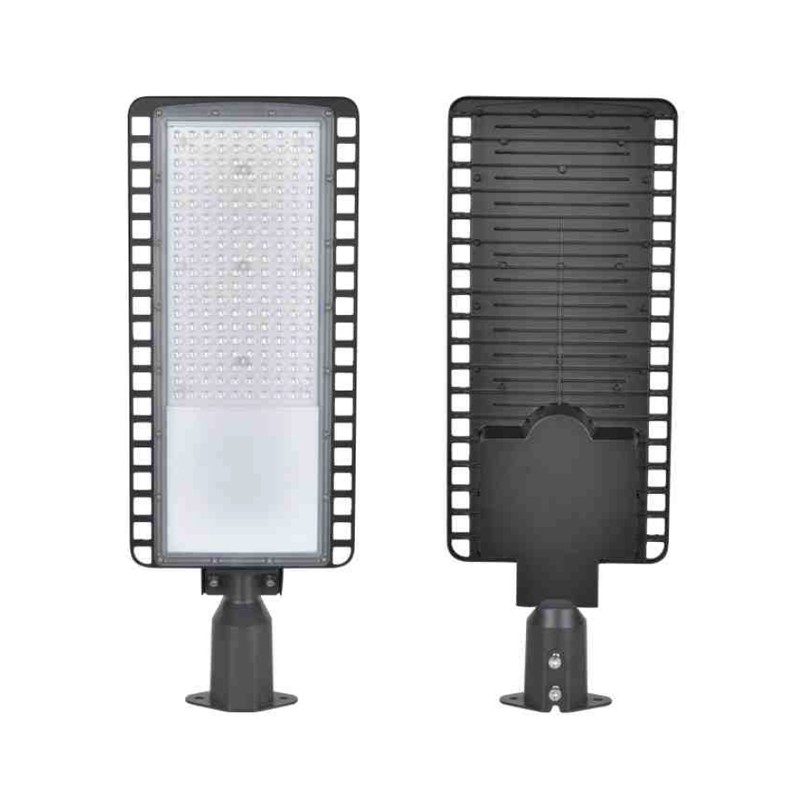

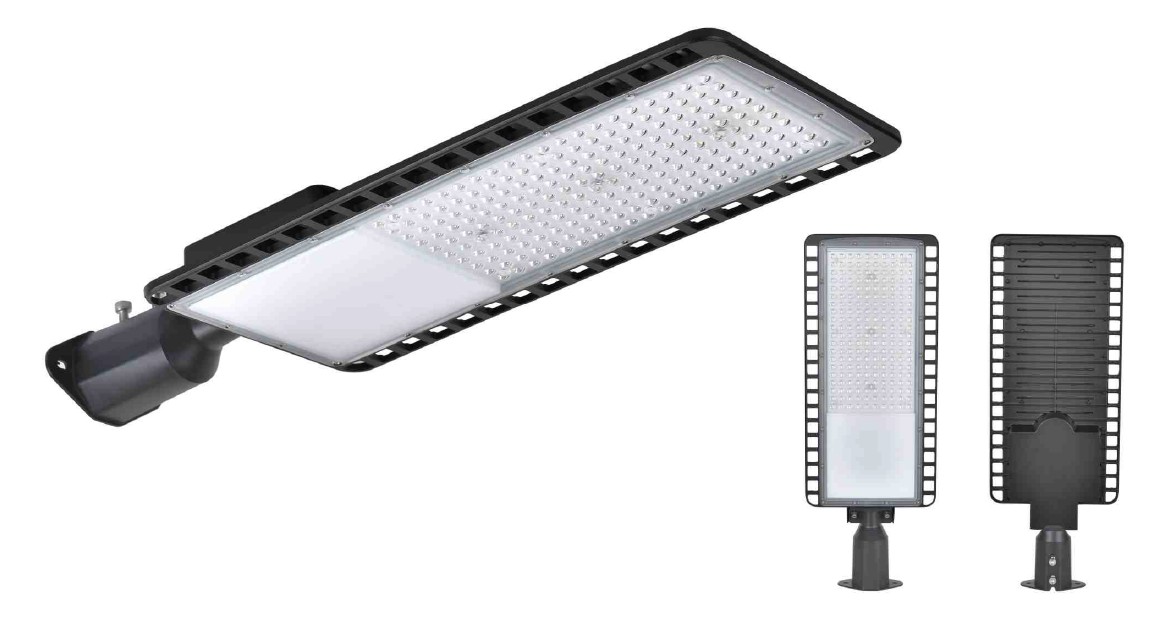

| CET-160B | 20W-60W | 452×175×72mm | 600g | Die-cast Aluminum + PC Lens
|
φ50 or φ60 | Sand Black/Grey
|
2835SMD/3030SMD | 60LED | 12B5C/5B12C |
| 70W-120W | 540×206×72mm | 820g | φ50 or φ60 | 150LED | 10B5C×3/3B25C×2 | ||||
| 150W-180W | 635×236×72mm | 1100g | φ50 or φ60 | 200LED | 10B5C×4/2B25C×4 | ||||
| 200W-250W | 705×246×72mm | 1300g | φ50 or φ60 | 250LED | 10B5C×5/2B25C×5 |

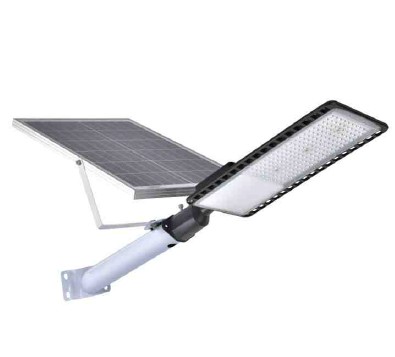

| LED Power | Battery | Solar Panel | Real Power | Working Time |
|---|---|---|---|---|
| 60W | 2PCS 10AH | 15W | 6-8W | 20-24H |
| 150W | 3PCS 15AH | 20W | 8-10W | 20-24H |
| 200W | 4PCS 20AH | 25W | 10-12W | 20-24H |
| 250W | 6PCS 30AH | 35W | 18-20W | 20-24H |
