Power: 12W
Input Voltage: DC24V
Color: Single Color / RGBW
CCT: 3000K / 4000K / 5000K / Other CCTs on request
RGBW: RGBW (White: 6000K)
Control: ON-OFF (Single Color) / DMX512 (RGBW)
CRI: ≥90
IP Rating: IP65
Beam Angle: 120°

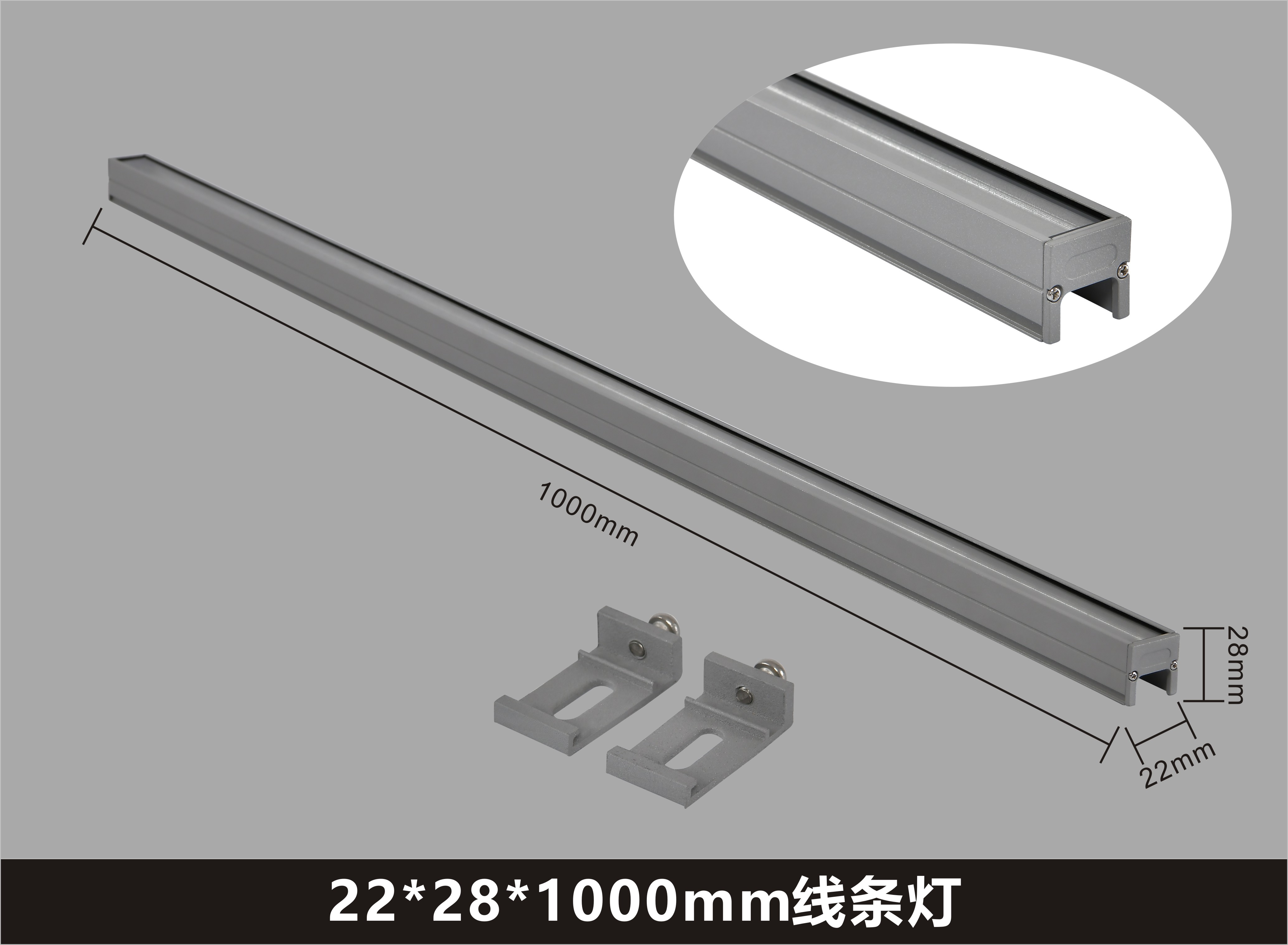

Dimensions: 22 × 28 × 1000 mm
Housing: Aluminum + PC
Cover: Clear / Milky
Housing Color: Standard Grey / Customizable
| Model | Voltage | Power | Color | Control |
|---|---|---|---|---|
| KONS-LL002-S-DC24-12W | DC24V | 12W | Single Color | ON-OFF |
| KONS-LL002-RGBW-DC24-12W | DC24V | 12W | RGBW (W: 6000K) | DMX512 |
KONSLIGHT LL002 12W Slim Outdoor LED Linear Light
KONSLIGHT LL002 is a compact outdoor LED linear light featuring a slim 22 × 28 mm profile for architectural contour, façade and landscape lighting.

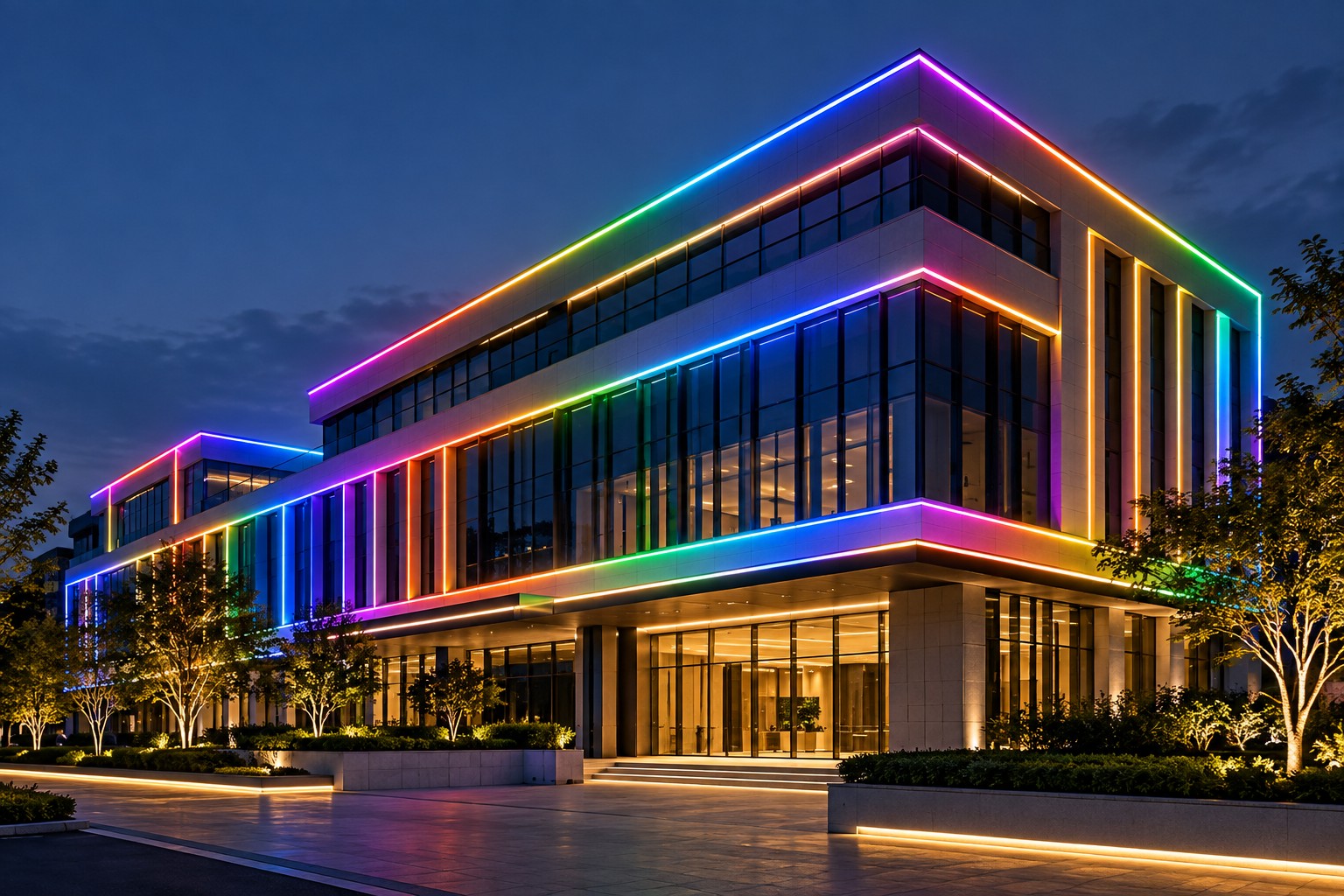

Operating on DC24V with a 120° wide beam, LL002 creates a soft and continuous linear lighting effect suitable for building outlines, bridges, railings, landscape structures and public spaces.
The single-color version supports ON-OFF operation, while the RGBW version supports DMX512 control for dynamic architectural lighting effects. Clear and milky PC cover options are available for different lighting requirements.
With its aluminum housing, PC cover and IP65 protection, LL002 provides a flexible solution for outdoor architectural and landscape lighting projects.
