Power: 18W
Input Voltage: DC24V
Color: Single Color / RGBW
CCT: 3000K / 4000K / 5000K / Other CCTs on request
RGBW: RGBW (White: 6000K)
Control: ON-OFF (Single Color) / DMX512 (RGBW)
CRI: ≥90
IP Rating: IP65
Beam Angle: 120°

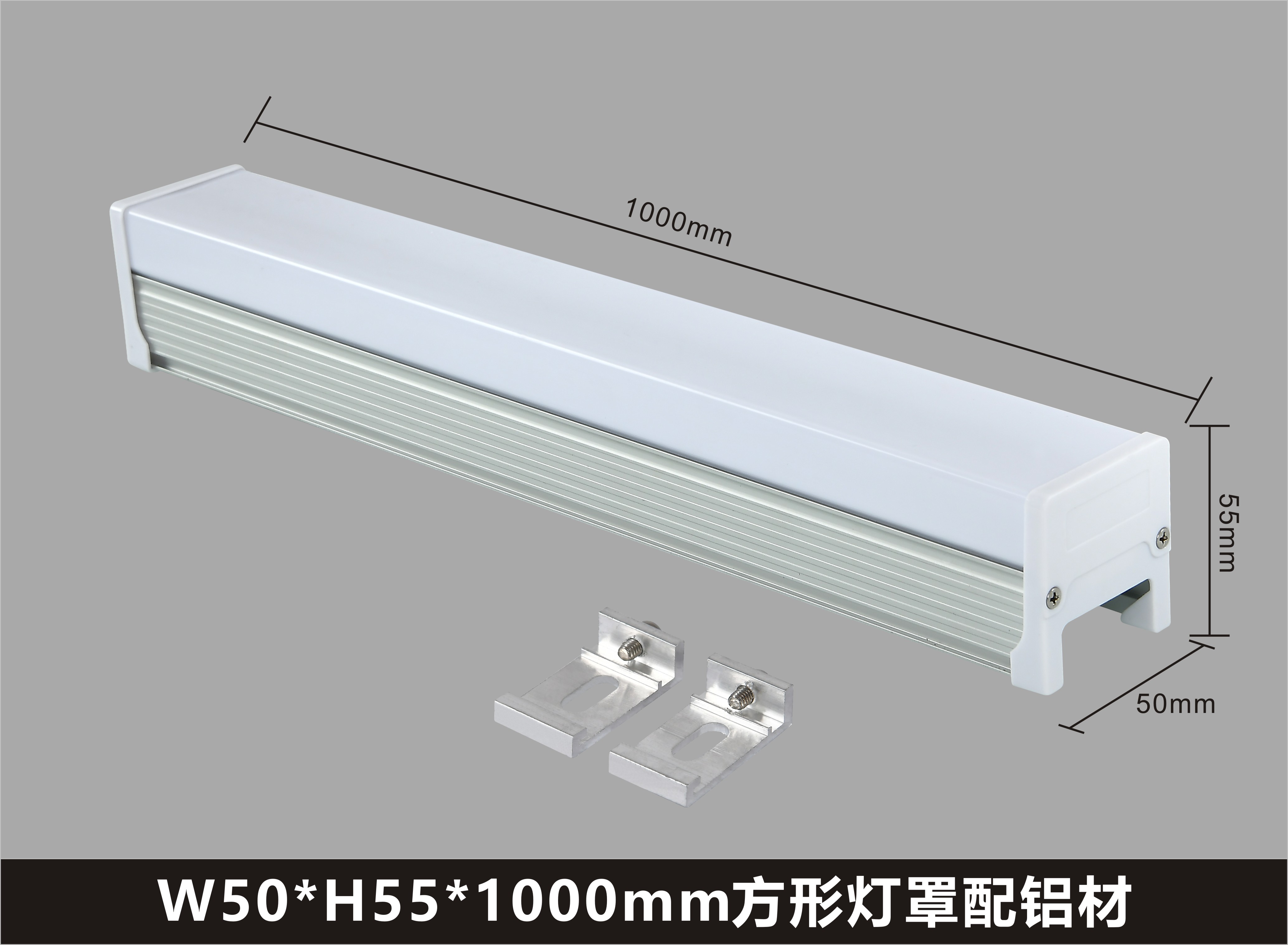

Dimensions: 50 × 55 × 1000 mm
Housing: Aluminum + PC
Cover: Clear / Milky
Housing Color: Standard Grey / Customizable
| Model | Voltage | Power | Color | Control |
|---|---|---|---|---|
| KONS-LL003-S-DC24-18W | DC24V | 18W | Single Color | ON-OFF |
| KONS-LL003-RGBW-DC24-18W | DC24V | 18W | RGBW (W: 6000K) | DMX512 |

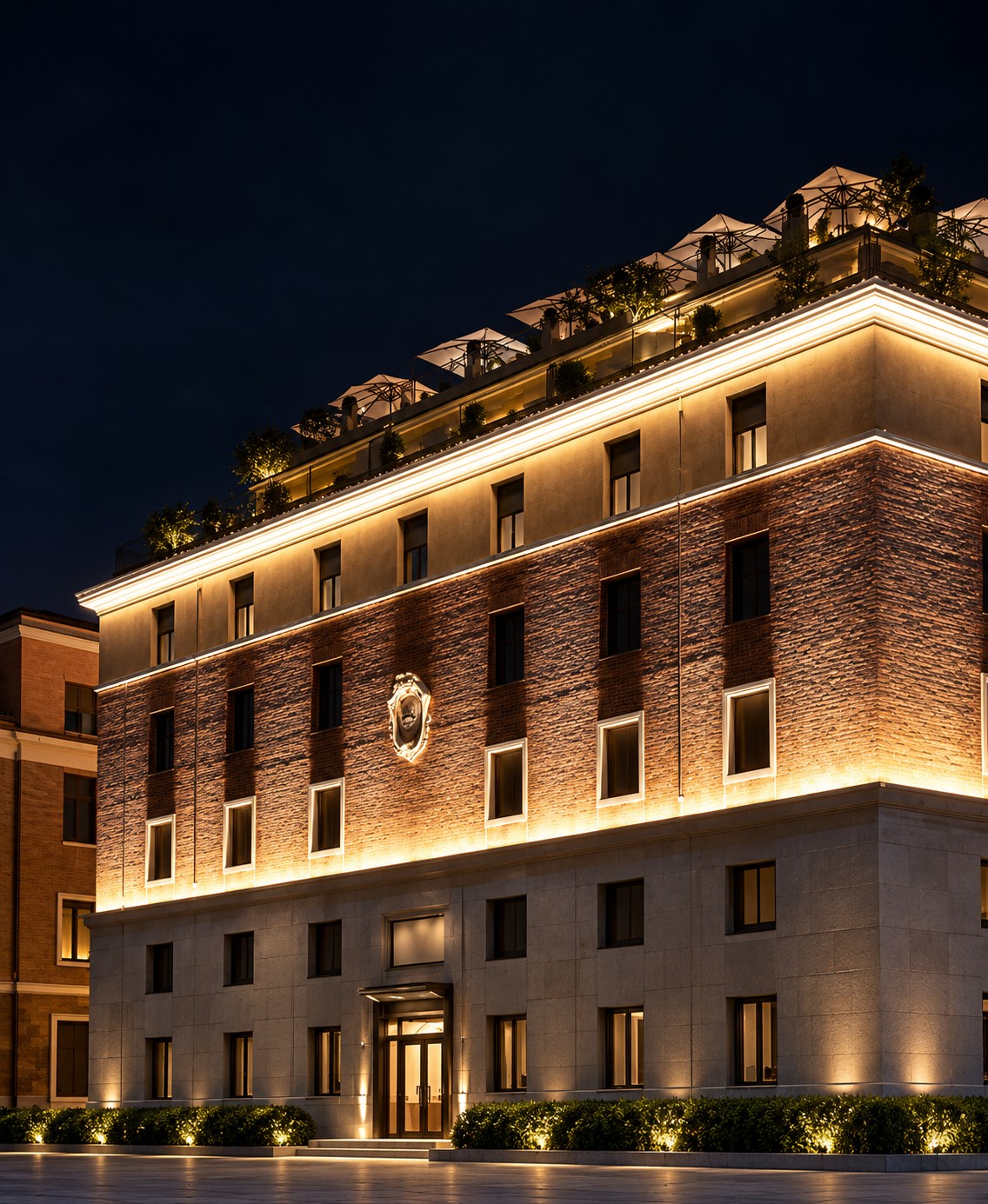

KONSLIGHT LL003 is an 18W outdoor LED linear light designed for architectural façade and landscape lighting.
Compared with the slim-profile LL001 and LL002 series, LL003 features a larger 50 × 55 mm housing, creating a more substantial linear lighting solution for building façades, bridges, architectural outlines and landscape structures.
The 120° wide beam provides broad, continuous illumination. Single-color versions support ON-OFF operation, while RGBW versions support DMX512 control for dynamic color-changing effects.
With its DC24V input, aluminum + PC construction and IP65 protection, LL003 is suitable for a wide range of outdoor architectural lighting projects.
