Power: 24W
Input Voltage: DC24V
Color: Single Color / RGBW
CCT: 3000K / 4000K / 5000K / Other CCTs on request
RGBW: RGBW (White: 6000K)
Control: ON-OFF (Single Color) / DMX512 (RGBW)
CRI: ≥90
IP Rating: IP65
Beam Angle: 120°
Dimensions: 100 × 63 × 1000 mm
Housing: Aluminum + PC
Cover: Clear / Milky
Housing Color: Standard Grey / Customizable
| Model | Voltage | Power | Color | Control |
|---|---|---|---|---|
| KONS-LL004-S-DC24-24W | DC24V | 24W | Single Color | ON-OFF |
| KONS-LL004-RGBW-DC24-24W | DC24V | 24W | RGBW (W: 6000K) | DMX512 |
KONSLIGHT LL004 is a 24W high-output outdoor LED linear light designed for architectural façade and landscape lighting applications.

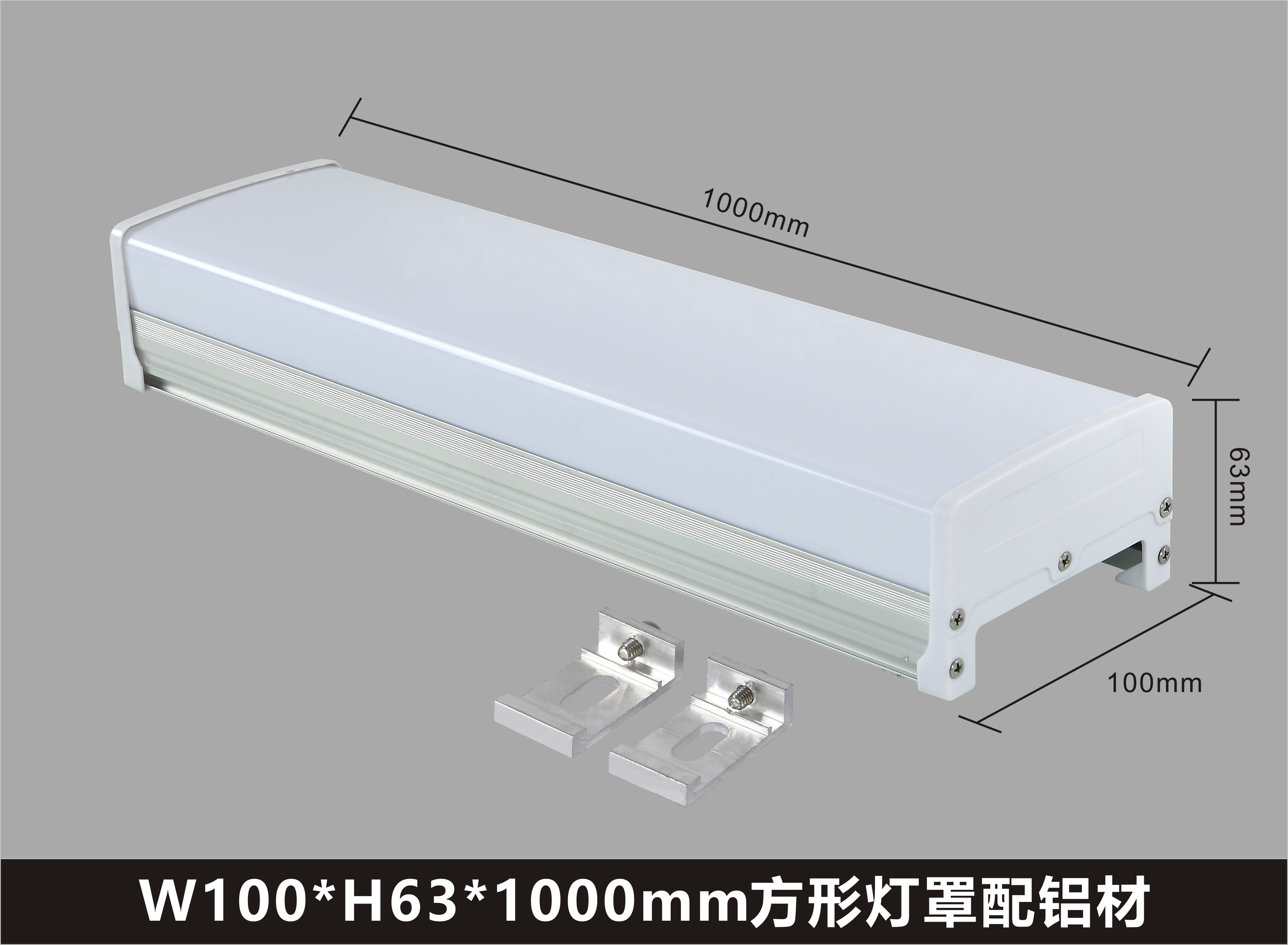

Featuring a 100 × 63 mm housing profile, LL004 provides a more substantial linear lighting solution for projects requiring strong and highly visible continuous lines of light.

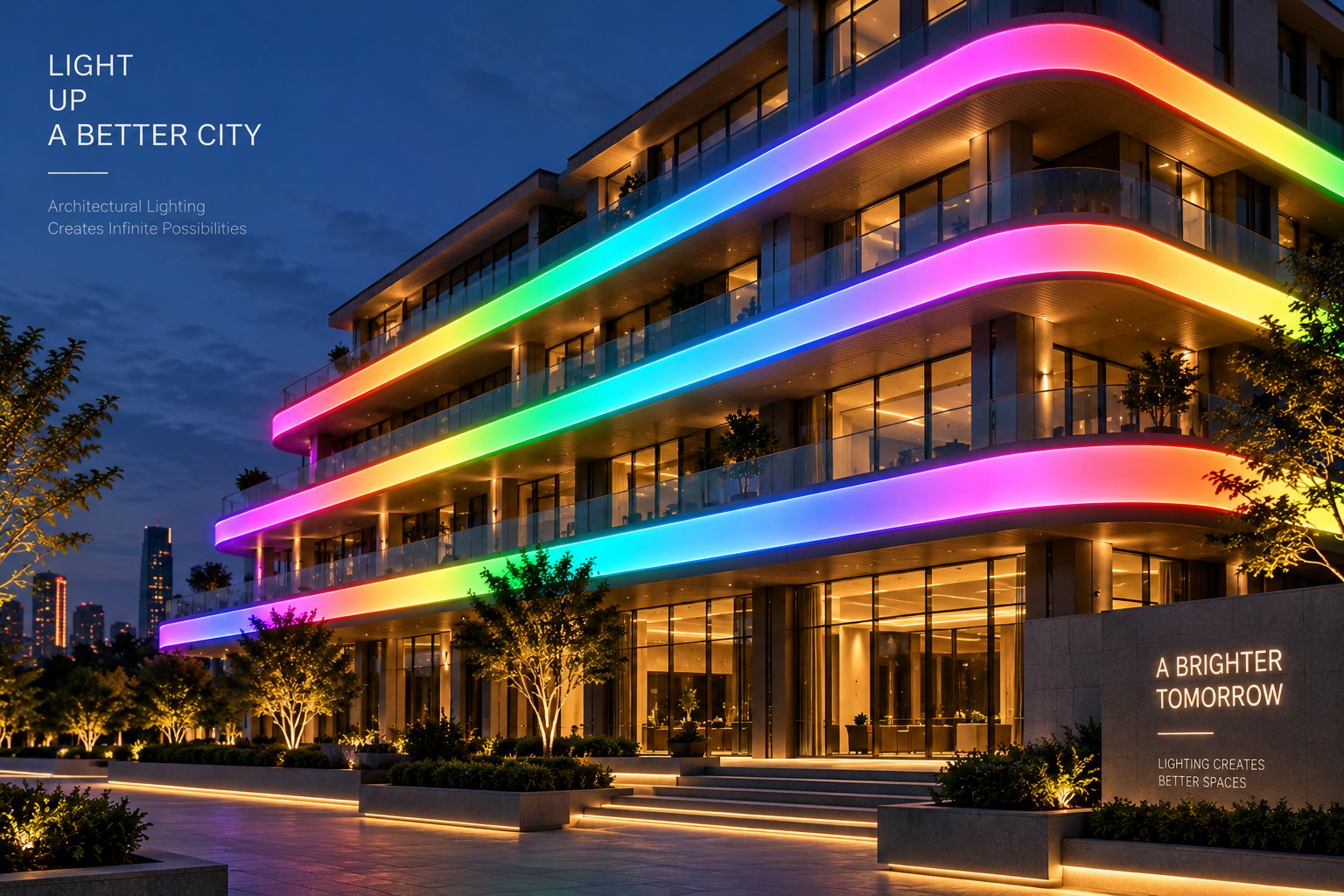

Its 120° wide beam is suitable for creating broad and uniform linear lighting effects on building façades, architectural structures, bridges, landscape features and public spaces.
Single-color versions support ON-OFF operation, while RGBW versions support DMX512 control for dynamic color-changing effects. The fixture operates on DC24V and features an aluminum housing with PC cover and IP65 protection.
