WW002 24W LED Wall Washer Light

Key Features

Power: 24W
Input Voltage: DC24V / AC100–277V
Color: Single Color / RGBW
CCT: 3000K / 4000K / 5000K / Other CCTs on request
Control: ON-OFF (Single Color) / DMX512 (RGBW)
CRI: ≥90
IP Rating: IP66
Beam Angles: 10° / 15° / 20° / 30° / 45° / 60° / 10×30° / 10×60° / 15×25°
Dimensions: 38 × 33 × 1000 mm
Housing: Aluminum + Tempered Glass
Housing Color: Standard Grey / Customizable
Cable: 2×1.0 mm² (Single Color) / 2×1.0 + 3×0.3 mm² (RGBW)
Baffle: Without / Optional

GET FREE QUOTE

Share to

Detailed Introduction

Available Models

Model	Voltage	Color
KONS-WW002-S-DC24-24W	DC24V	Single Color
KONS-WW002-RGBW-DC24-24W	DC24V	RGBW
KONS-WW002-S-AC-24W	AC100–277V	Single Color
KONS-WW002-RGBW-AC-24W	AC100–277V	RGBW

KONSLIGHT WW002 24W LED Wall Washer Light

KONSLIGHT WW002 features a slim aluminum profile designed for architectural façade and landscape lighting projects. Its compact housing provides a clean appearance while delivering focused linear illumination for building façades, walls, columns and landscape structures.

The series is available in DC24V and AC100–277V, with both single-color and RGBW configurations. Multiple optical options can be selected according to different project lighting requirements.

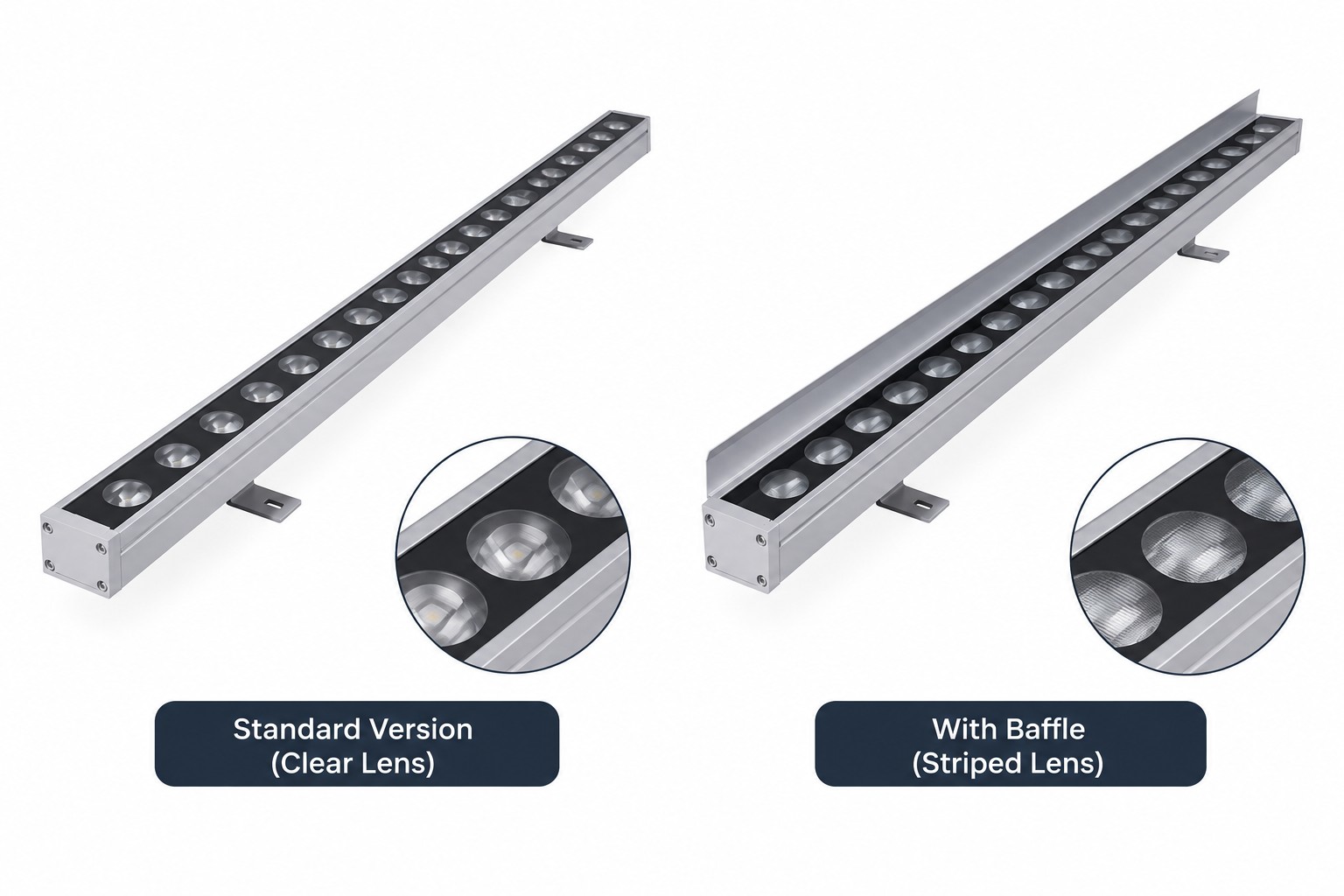

An optional baffle version is available for applications requiring better glare control and reduced direct visibility of the light source. The adjustable mounting brackets allow flexible aiming during installation.For RGBW configurations, the white channel is standardized at 6000K.
