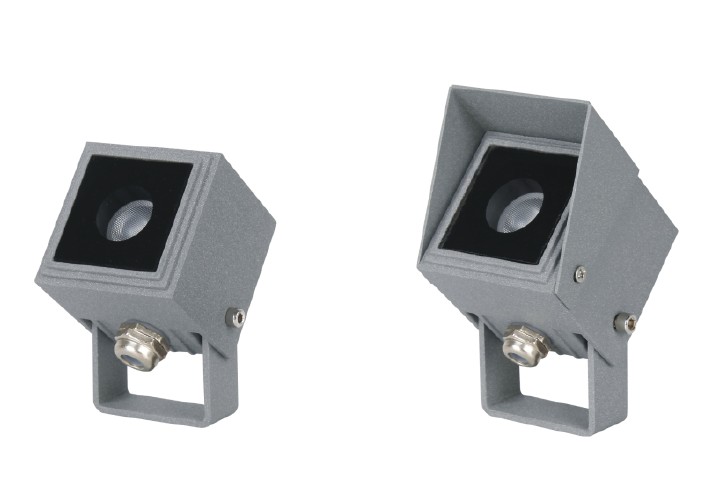

KSYC-041-2 Mini Cube Spotlight for Architectural Accent Lighting

KONSLIGHT KSYC-041-2 is a compact cube-style spotlight with 1–5W LED options and an ADC12 cast aluminum housing. It can be considered for architectural details, landscape accents and outdoor project layouts where a compact fixture is needed. Confirm the optical distribution and mounting arrangement against the project design.

Technical Specifications

Model: KSYC-041-2
Product: Mini cube spotlight
Power options: 1–5W, configuration dependent
LED option: Cree 3535
Housing material: ADC12 cast aluminum
IP rating: IP67, as listed in the product data
Listed product weight: 165g
Order confirmation: Input voltage, driver, light color, control method, beam angle and dimensional drawing

Product Reference

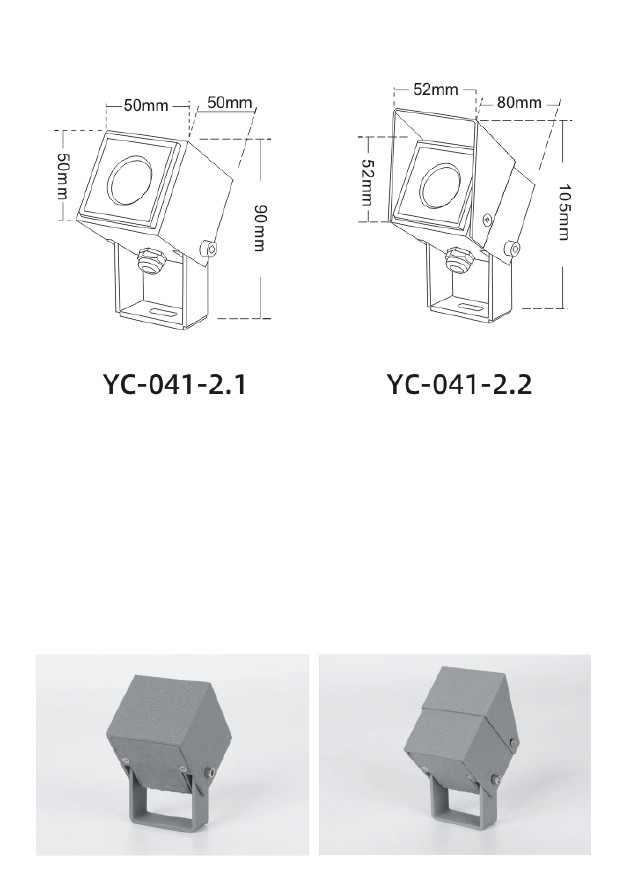

Request the current dimensional drawing before specifying mounting clearances or ordering.

Single-Color and RGBW Options

This discrete-LED model can be supplied in single-color or RGBW configurations. Specify the required white-light CCT or RGBW version when requesting a quotation. Rated power, LED arrangement, driver and control protocol are confirmed separately for the selected version; the listed power option must not be assumed to apply to every RGBW configuration.

Input Voltage and Driver Arrangement

AC100–277V is the usual supply configuration when the housing accommodates a suitable driver. For compact housings that cannot contain the driver, a DC12V or DC24V version is used with a matching external power supply. Confirm the actual input voltage and driver arrangement for this model before ordering. AC and DC versions are separate configurations, not interchangeable inputs.

Configuration for Your Project

Send the required quantity, installation location, supply voltage, light color and control requirements. Confirm the beam angle, mounting details, finish, dimensional drawing and supplied accessories. Certification documents, warranty terms and delivery time are confirmed for the selected configuration. Flexible project quantities and small-batch customization are supported.
