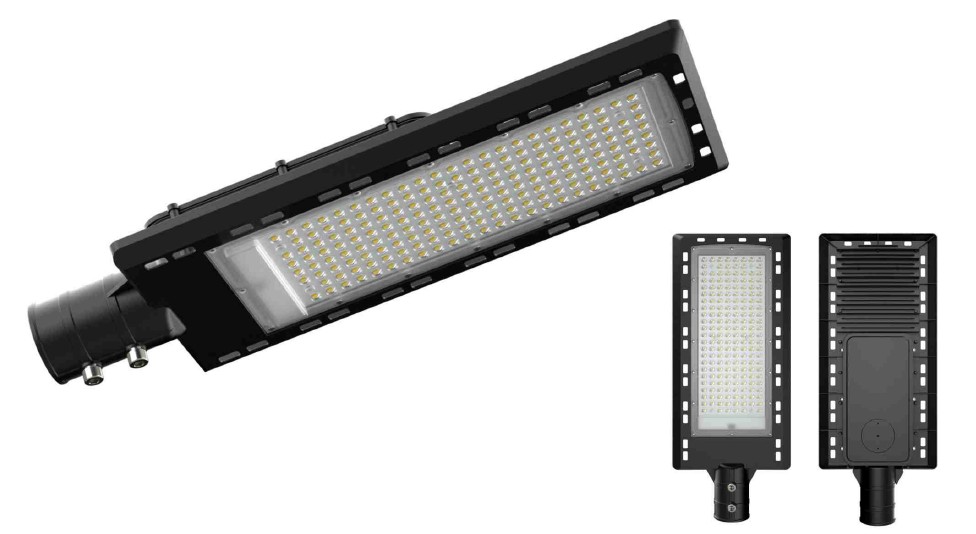

| Model | Power | Size | Housing N.W. | Material | Pole Dia. | Housing Color | Chips | Chips QTY | PCB |
|---|---|---|---|---|---|---|---|---|---|
| CET-170 3030SMD | 50W/60W | 405×166×83mm | 770g | Die-cast Aluminum + PC Lens
|
φ60 | Sand Black/Sand Grey
|
2835SMD/3030SMD | 60LED | 12B5C/5B12C |
| 100W | 484×212×84mm | 1200g | φ60 | 100LED | 10B5C×2/2B25C×2 | ||||
| 120W | 484×212×84mm | 1200g | φ60 | 120LED | 12B5C×2/5B12C×2 | ||||
| 150W/180W | 580×242×84mm | 1600g | φ60 | 180LED | 12B5C×3/5B12C×3 | ||||
| 200W | 580×242×84mm | 1600g | φ60 | 200LED | 10B5C×4/2B25C×4 | ||||
| CET-170 5050SMD | 50W/60W | 405×166×83mm | 770g | Die-cast Aluminum + PC Lens
|
φ60 | Sand Black/Sand Grey
|
5050 5W
|
30LED | 6B5C / 15B2C |
| 100W/120W | 484×212×84mm | 1200g | φ60 | 60LED | 6B5C×2 / 30B2C | ||||
| 150W/200W | 580×242×84mm | 1600g | φ60 | 90LED | 6B5C×3 / 45B2C |
| LED Power | Battery | Solar Panel | Real Power | Working Time |
|---|---|---|---|---|
| 60W | 4PCS 20AH | 25W | 10-12W | 20-24H |
| 120W | 5PCS 25AH | 30W | 15-18W | 20-24H |
| 180W | 6PCS 30AH | 35W | 20-22W | 20-24H |
