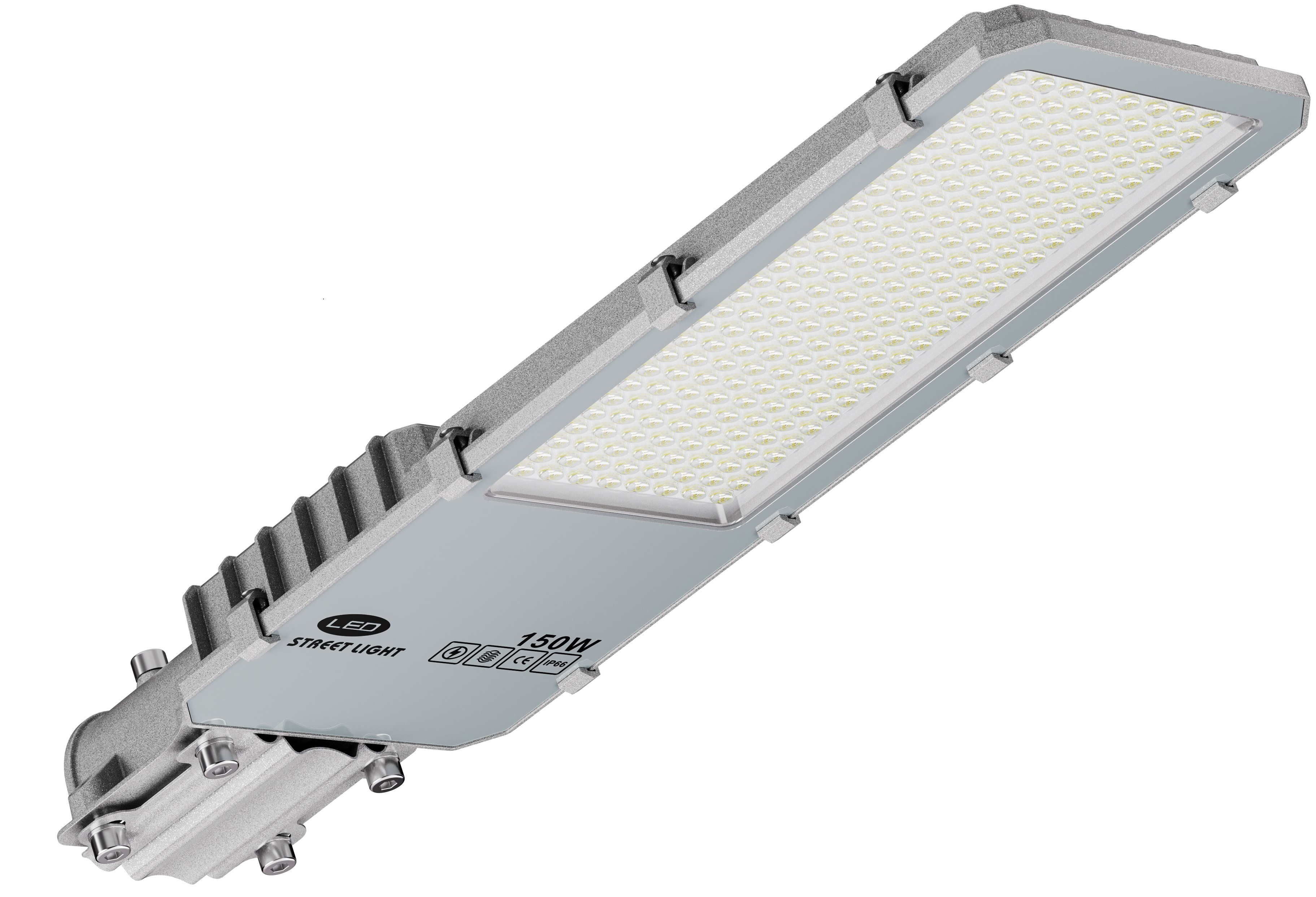

KSCET-140B Single-Color LED Street Light for Roadway Projects

Die-cast aluminum street light for municipal roads, industrial parks and outdoor infrastructure projects. The existing product sheet lists AC 100–277 V input, 2700 K / 3000 K / 4000 K / 6000 K color-temperature options, and on/off or 0–10 V control options. The listed beam angle is 70° × 150°; request the photometric file for the selected configuration before project approval.

• Power options in the supplied table: 60 W, 120 W, 150 W, 200 W and 300 W.
• IP66 is listed for every variant in the specification table. Confirm the test report for the ordered configuration.
• Claimed luminous efficacy in the existing material: 120–130 lm/W. Request measured test data for the selected wattage.
• Warranty in the existing material: 5 years; confirm written terms in the quotation.

Product and installation reference

Application illustration

This roadway scene illustrates a potential application; it is not a measured project installation or photometric simulation.

For project quotation, share pole height and spacing, road width, target illuminance, preferred color temperature, driver control and certification requirements.
