Input Voltage: DC24V
Power: 1.2W Single Color / 1.8W RGBW
LED Quantity: 6 LEDs
Single Color: 6000K
RGBW: RGBW (White: 6000K)
Control: ON-OFF (Single Color) / DMX512 (RGBW)
Beam Angle: 120°
IP Rating: IP67

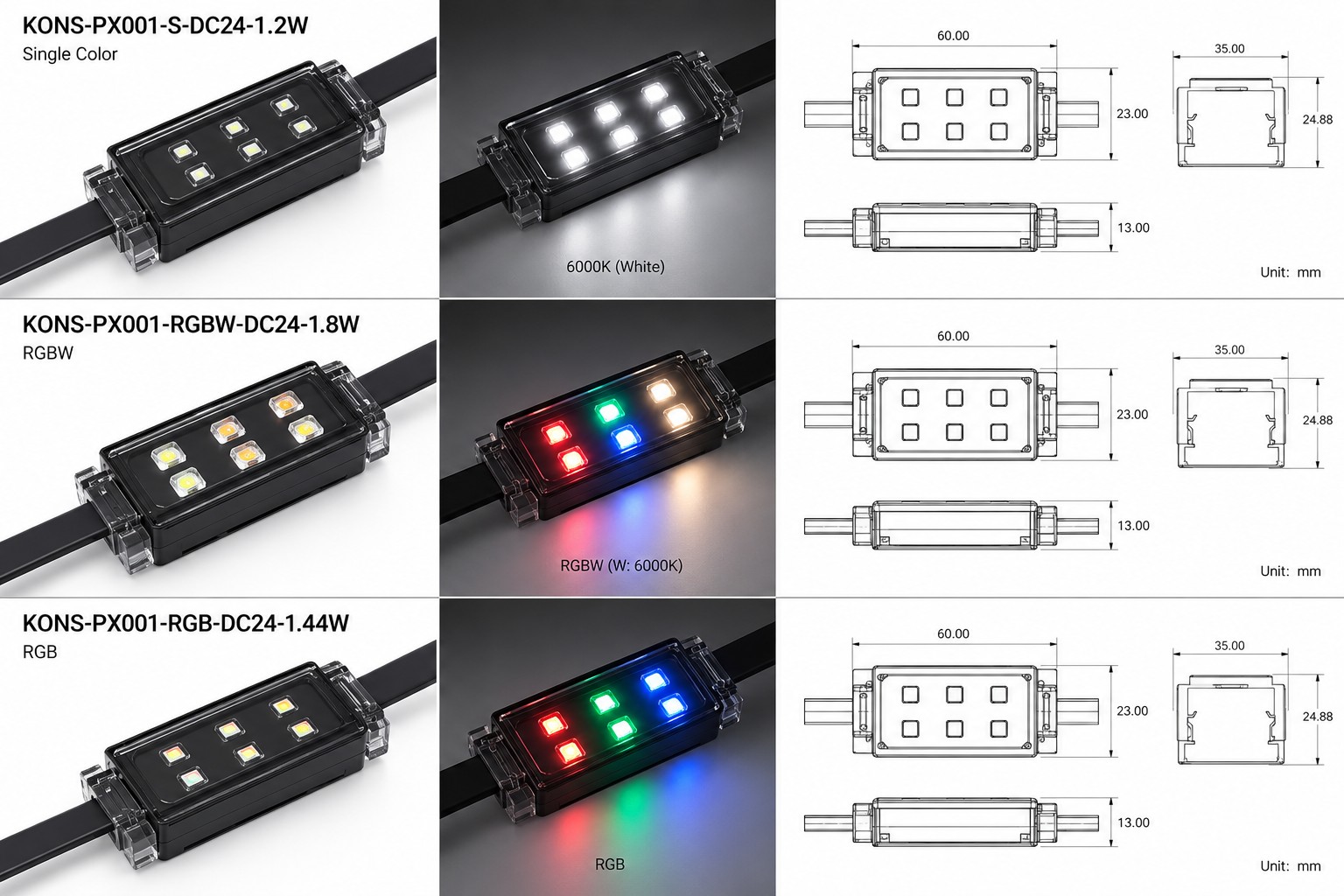

Dimensions: 60 × 23 mm
Operating Temperature: -30°C ~ +60°C
LED Lifetime: 50,000 Hours
Installation: Flexible / Multiple Installation Options
| Model | Power | Voltage | Color | Control |
|---|---|---|---|---|
| KONS-PX001-S-DC24-1.2W | 1.2W | DC24V | 6000K | ON-OFF |
| KONS-PX001-RGBW-DC24-1.8W | 1.8W | DC24V | RGBW (W: 6000K) | DMX512 |
KONSLIGHT PX001 LED Pixel Light is a compact outdoor lighting solution designed for architectural façades, building outlines and creative decorative lighting projects.
Its compact 60 × 23 mm design allows individual pixel modules to be arranged flexibly to follow different architectural shapes and structures. The 120° wide beam provides a broad visual lighting effect, making it suitable for façades, building contours and decorative lighting installations.
The single-color version operates on DC24V with simple ON-OFF control, while the RGBW version supports DMX512 control for dynamic color-changing effects and programmable architectural lighting.
With IP67 protection and flexible installation options, PX001 is suitable for a wide range of outdoor architectural lighting applications.
